CZ Purlin Roll Forming Machine with 16 Roller Stations Automatic Fixed-Length Cutting and Hydraulic Station for High Efficiency

16 Roller Stations CZ Purlin Roll Forming Machine

Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine

Hydraulic Station C Panel Forming Machine

Herkunftsort:

China Festland

Markenname:

FMS

Zertifizierung:

ISO CE

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Produktname:

DIN-Schienen-Rollformmaschine Omega-Profilbolzen-Herstellungsmaschine

Rohstoff:

PPGI, verzinkt

Geschwindigkeit:

8-15m/min

Materialstärke:

1 mm - 3 mm

Gewicht:

9 Tonnen

Garantie:

1 Jahr

Leistung:

15 kW

Steuerungssystem:

Plc

Hervorheben:

16 Roller Stations CZ Purlin Roll Forming Machine

Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine

Hydraulic Station C Panel Forming Machine

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Set

Preis

negotiable

Verpackung Informationen

40 'flc

Lieferzeit

30 Arbeitstage

Zahlungsbedingungen

L/c, t/t, d/a, d/p

Versorgungsmaterial-Fähigkeit

20 Sätze pro Monat

Verwandte Produkte

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Beste Preis

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Beste Preis

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Beste Preis

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Beste Preis

Kontakt mit uns

86-317-2016816

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Steel C/Z Purlins Machine - C/Z Purlin Forming Machine - C Panel Forming Machine

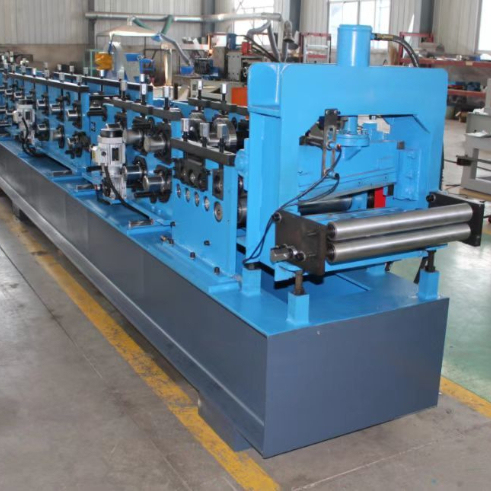

The Omega hat-shaped steel purlin forming machine is a complete system consisting of passive unwinding rack, unwinding rack base, feed introduction platform, leveling device, forming host, punching device, forming and cutting device, hydraulic station, and computer control cabinet.

The machine produces hat-shaped purlins with excellent bending and compression resistance, superior flatness, and features automatic fixed-length cutting and punching. Its high automation level ensures quick and convenient installation.

Technical Specifications

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm - 3 mm
3	Working Speed	8-15m/min (excluding cutting time)
4	Roller Station	16 Rows
5	Dimension	650013001200 mm
6	Machine Weight	8000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V, 60HZ, 3 PHASES (customizable)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45# steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Applications

The hat-shaped steel purlin forming machine serves as the primary stress structure for large and medium-sized industrial and civil buildings. It's used for:

Creating non-load-bearing walls and roof decorations with plasterboard, gypsum board, and other lightweight materials
Constructing various decorative building roof shapes
Forming interior and exterior building walls and ceiling scaffolding base materials

The products are ideal for hotels, theaters, shopping malls, factories, office buildings, renovation projects, interior decoration settings, and various roof applications.

Key Advantages

Automatic control software for production information management
Simple operation and easy maintenance
Quick mechanical debugging and mold replacement
Highly integrated network automation system for superior performance
