Door Guide Rails Guide Rail Roll Forming Machine

door guide rail roll forming machine

cz purlin roll forming machine with warranty

guide rail roll forming machine for doors

Herkunftsort:

CHINA

Markenname:

FMS

Zertifizierung:

Kontakt mit uns

Bitte um ein Angebot

Door Guide Rails Guide Rail Roll Forming Machine

Einzelheiten zum Produkt

Fliesentyp:

Führungsschiene-Rolle, die Maschine bildet

Verwenden:

Tür

balde Material:

CR12

Hydraulikstation Strom:

5..5 KW

Material der Walze:

GCr15, gelöscht

Schneidsystem:

Hydraulisches Schneiden

Schachtdurchmesser:

Ø70mm

Hydraulische Zerspanungsleistung:

5,5 kW

Fliesendicke:

0,5-1 mm

Materialstärke:

Gemäß Zeichnungen

Größe:

6.800*1250*1400mm

Stanzen:

Ein- und Doppellöcher

Arbeiten:

Intelligenz, einfache Steuerung, Touchscreen

Hervorheben:

door guide rail roll forming machine

cz purlin roll forming machine with warranty

guide rail roll forming machine for doors

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Set

Preis

negotiable

Verpackung Informationen

Nackt mit Plastikfilm.

Lieferzeit

45 worl Tage

Zahlungsbedingungen

T/t, l/c

Versorgungsmaterial-Fähigkeit

20 Stück pro Monat

Verwandte Produkte

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Beste Preis

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Beste Preis

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Beste Preis

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Beste Preis

Kontakt mit uns

86-317-2016816

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

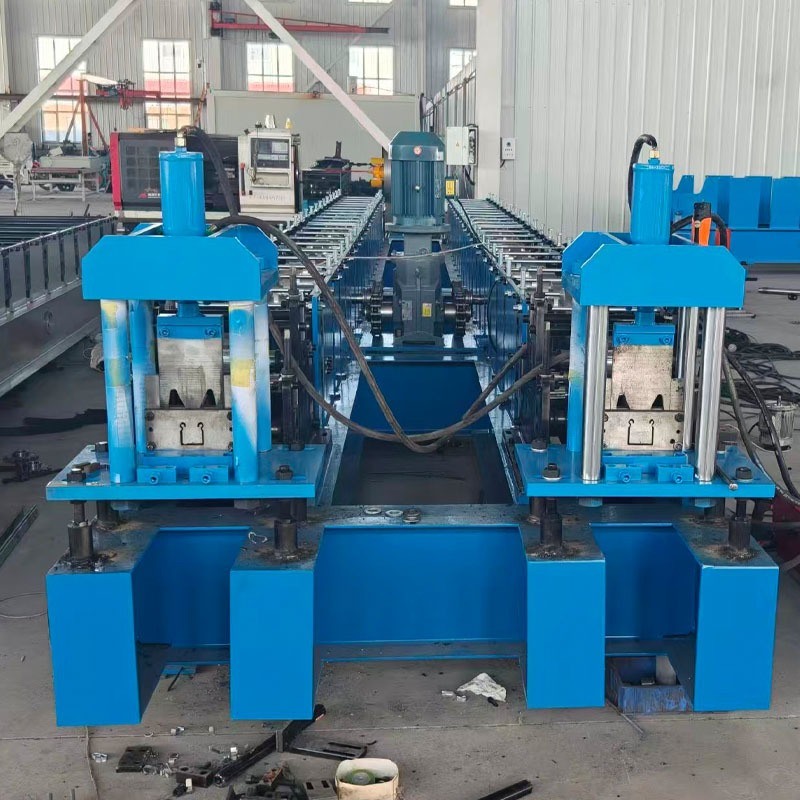

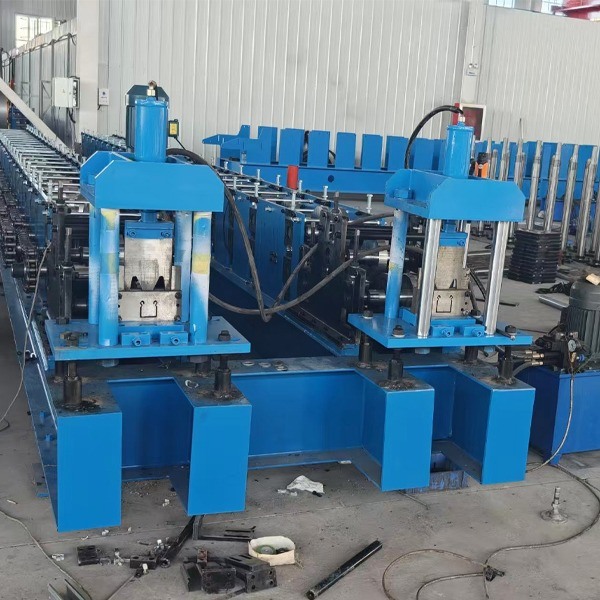

Door Guide Rails Guide Rail Roll Forming Machine

Product Description

This line is designed to produce various types of hollow elevator guide rails. The elevator guide rail production line has the characteristics of high accuracy and straightness, and our machines can produce different elevator guide rails according to customers' drawings.

Technical Parameters

Parameter	Value
Material	GI
Transmission	1.0 Chain
Control System	PLC
Warranty	1 year
Cutting Tolerance	±2mm
Cutting Type	Hydraulic Cutting
Voltage	380V/50Hz/3Phase
Forming Speed	8-15m/min
Shaft Diameter	70mm
Weight	4500kg

Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase except Electrical parts.
Repairs will not be performed even during the guarantee period in the following circumstances:
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation

Payment Terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 35 days after the down payment is received

FAQ

Q: What is the Brand Name of Stud And Track Roll Forming Machine?

A: The Brand Name of Stud And Track Roll Forming Machine is FMS.

Q: What is the Model Number of Stud And Track Roll Forming Machine?

A: The Model Number of Stud And Track Roll Forming Machine is FMS-stud&track.

Q: Where is Stud And Track Roll Forming Machine made?

A: Stud And Track Roll Forming Machine is made in China.

Q: What is the size of Stud And Track Roll Forming Machine?

A: The size of Stud And Track Roll Forming Machine depends on your requirements.

Q: What is the power of Stud And Track Roll Forming Machine?

A: The power of Stud And Track Roll Forming Machine depends on your requirements.
