C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

light gauge steel roll forming machine

villa house roll forming machine

stud and track roll forming machine

Herkunftsort:

CHINA

Markenname:

FMS

Zertifizierung:

ISO CE

Modellnummer:

C89

Kontakt mit uns

Bitte um ein Angebot

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Einzelheiten zum Produkt

Produktname:

C89 Rollformmaschine

Dimension (l*w*h):

6800 mm*1000 mm*1500 mm

Rohstoff:

Galvalum, galvanisiert

Arbeitsgeschwindigkeit:

20 m/min - 25 m/min

Farbe:

Weiß

Lieferung:

45 Arbeitstage

Motorleistung:

7,5 kW

Behälterlast:

20 Fuß

Kriegsgefangenversorgung:

380V, 60Hz, 3Ph

Profil:

C89

Steuerungssystem:

Plc

Schneidlänge Genauigkeit:

± 2 mm

Schneidsystem:

Hydraulik

Materialstärke:

0,8-1,2 mm

Stromspannung:

380V

Hervorheben:

light gauge steel roll forming machine

villa house roll forming machine

stud and track roll forming machine

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Set

Preis

negotiable

Verpackung Informationen

20 'FLC

Lieferzeit

30 Arbeitstage

Zahlungsbedingungen

L/c, t/t, d/a, d/p

Versorgungsmaterial-Fähigkeit

20 Sätze pro Monat

Verwandte Produkte

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Beste Preis

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Beste Preis

10-15m/min CU track Machine About 7.5m1.5m1.2m Design at 10-15m/min

Beste Preis

Video

Schnelle Stahlleichtbau L-Wandwinkel-Eckleisten-Profilieranlage

Beste Preis

Kontakt mit uns

86-317-2016816

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

High speed Stud And Track Roll Forming Machine with flying cutting system

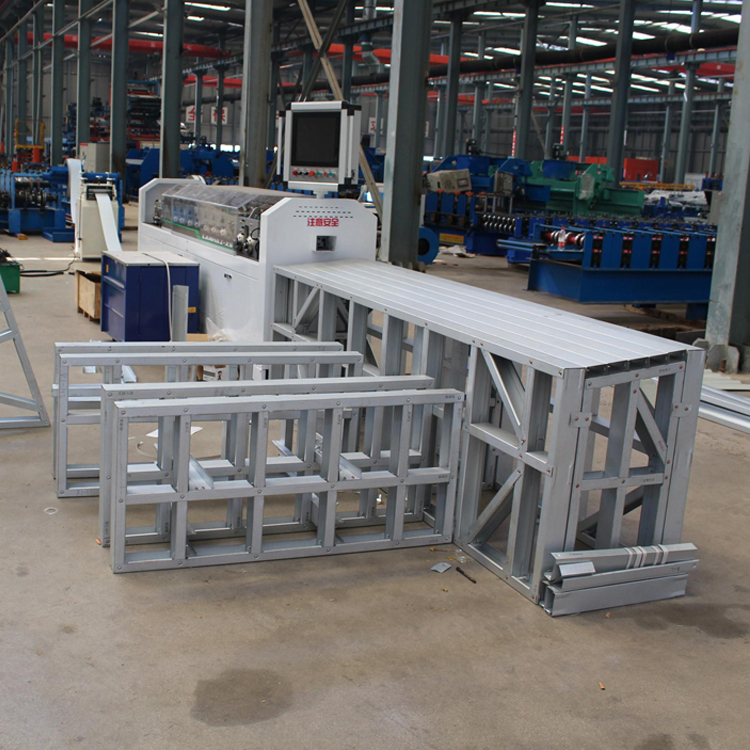

Light gauge steel villa stud cold-forming equipment is a type of roll forming machinery specifically designed to produce the primary structural components--the studs, tracks, and channels--used in Light Gauge Steel Framing (LGSF) for construction, particularly in modern villas and residential buildings. This equipment transforms continuous coils of galvanized steel sheet into precise, high-strength C-sections (studs), U-sections (tracks), and other custom profiles through a cold-forming process.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.5-1.2 mm
3	Working Speed	20-40 m/min
4	Roller Station	9 Raws
5	Dimension (LWH)	5800 mm1000 mm1500 mm
6	Machine Weight	2000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

Easy to operate
Long warranty

Payment terms

40% in advance as down payment by TT
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
