the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

glazed roof sheet forming machine

0.3-0.8mm roof tile roll forming machine

factory price roof tile machine

Herkunftsort:

China Festland

Markenname:

CANGZHOU FMS

Zertifizierung:

ISO CE

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Produktname:

Glasierte Fliesenrollenformmaschine 4 Meter / min mit 18 Zeilen

Rollschanzte aus glasierter Fliese:

20 Zeilen

Produktionsgeschwindigkeit:

0 - 4 m / min

Stromspannung:

380 V 50 Hz 3Phasen

Steuerungssystem:

Plc

Die Breite von H -Stahl:

350 - 400 mm

Motorstil:

5,5 kW Servomotor

Automatisierung:

Vollautomatisch

Hervorheben:

glazed roof sheet forming machine

0.3-0.8mm roof tile roll forming machine

factory price roof tile machine

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Set

Preis

negotiable

Verpackung Informationen

40 'flc

Lieferzeit

30 Arbeitstage

Zahlungsbedingungen

L/c, t/t, d/a, d/p

Versorgungsmaterial-Fähigkeit

20 Sätze pro Monat

Verwandte Produkte

Video

2025 Neues Design für Glasdachfliesen und Rollformmaschine mit 18 Reihen

Beste Preis

Video

Maschine 4meter/Min Glazed Tile Roll Forming mit 18 Reihen

Beste Preis

Video

380v 50hz Wellstoff-Dachblech-Rollformmaschine Stabile Leistung Langlebigkeit

Beste Preis

Video

Stone Coat Metal Roof Making Machine 0.3 -0.6 Mm Thickness Non Corrosion

Beste Preis

Kontakt mit uns

86-317-2016816

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

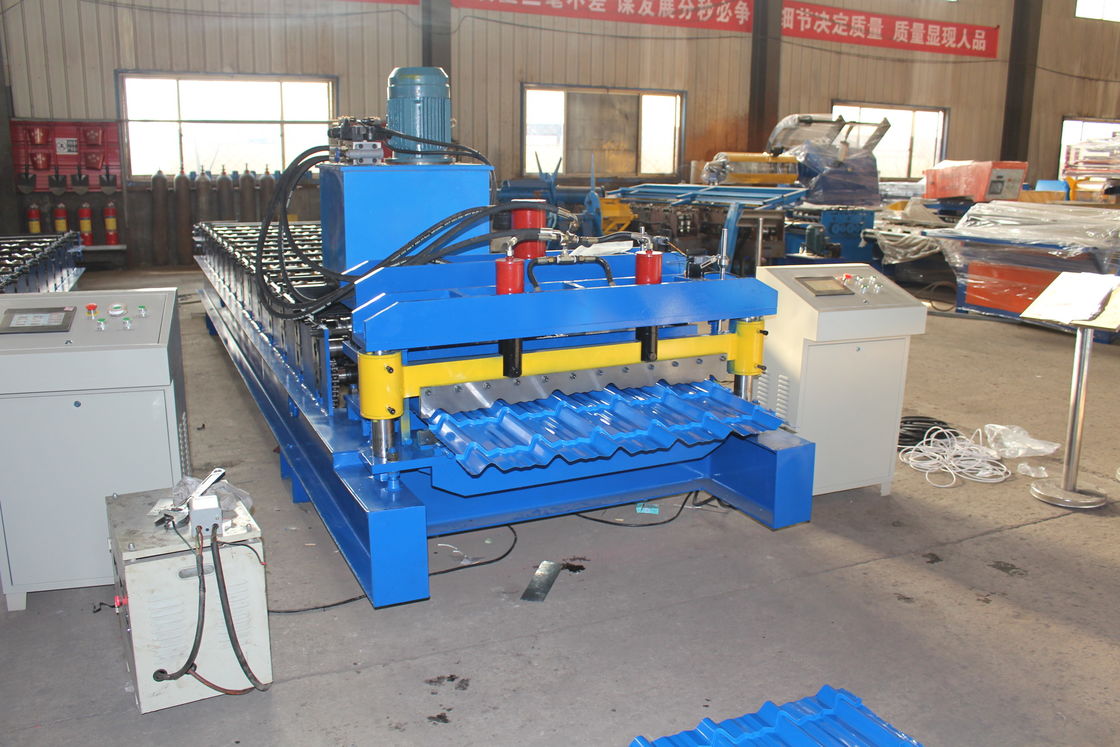

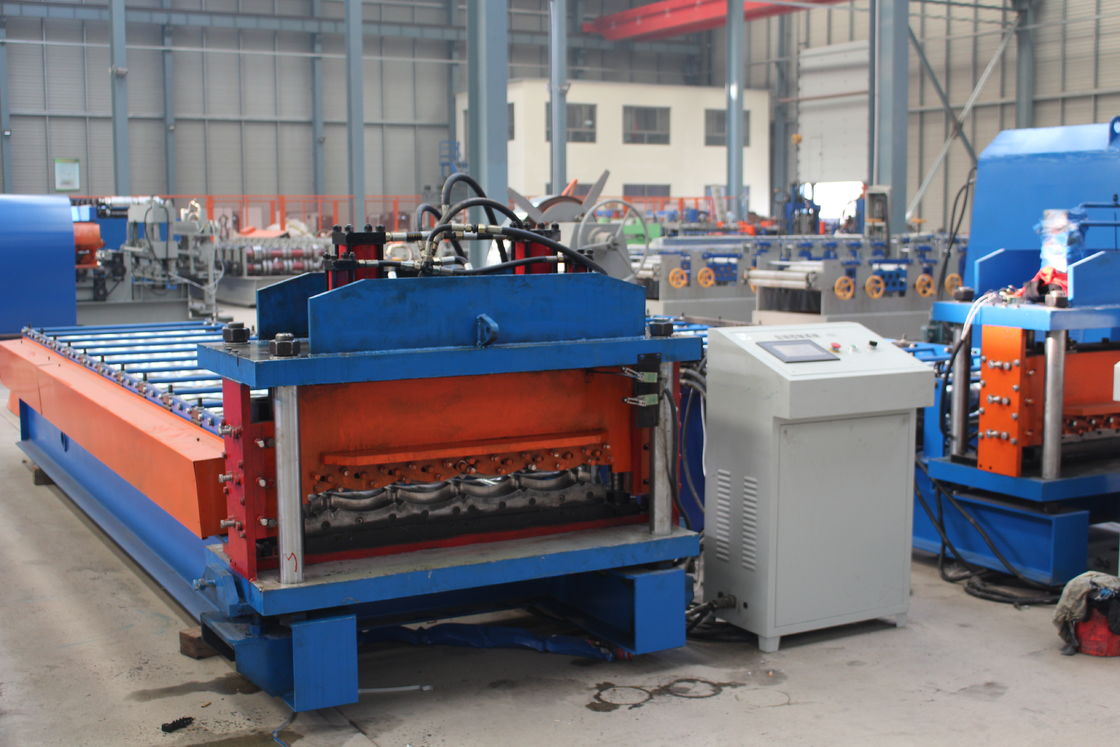

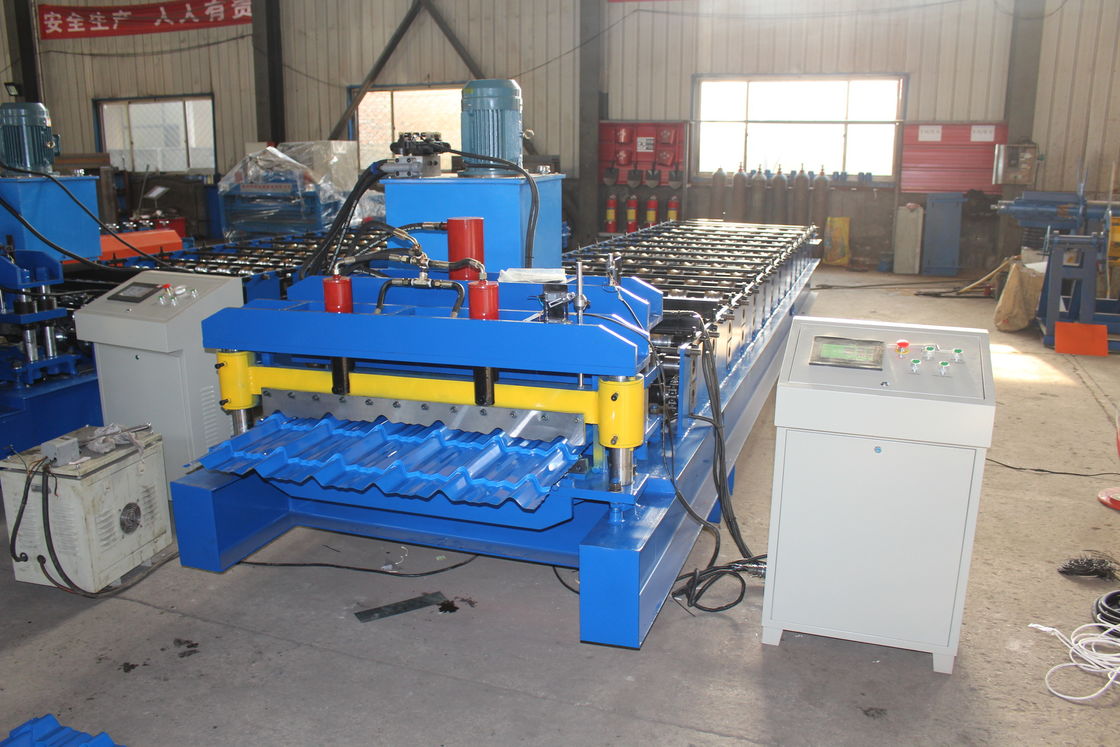

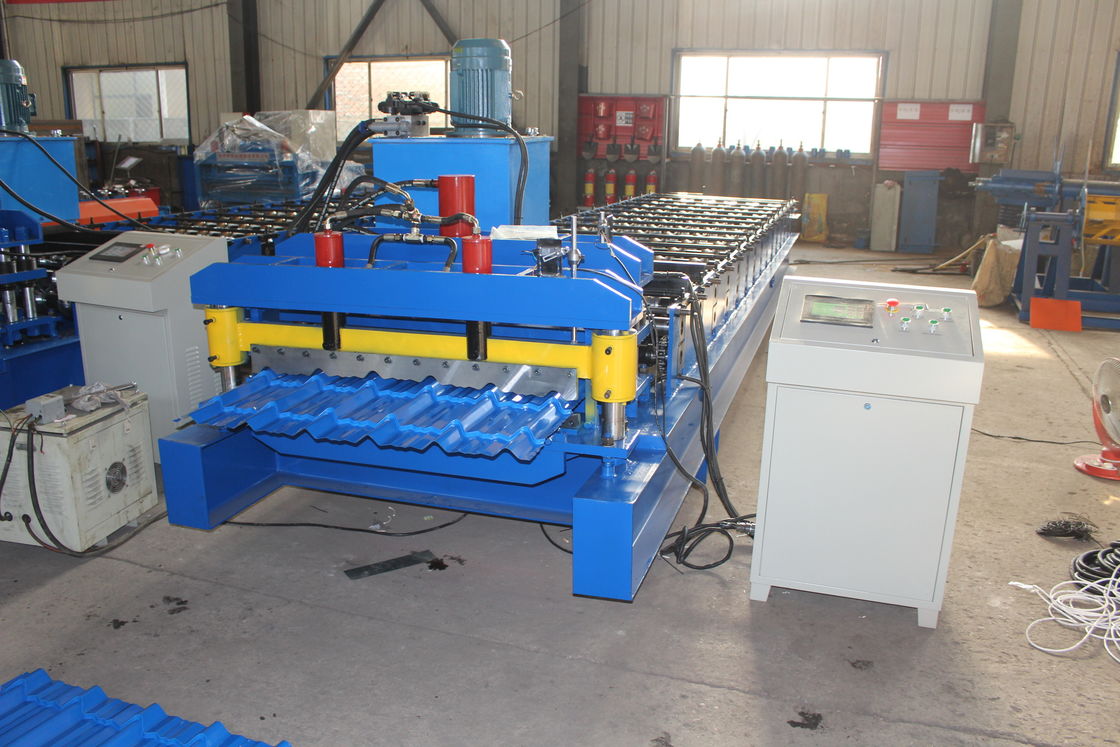

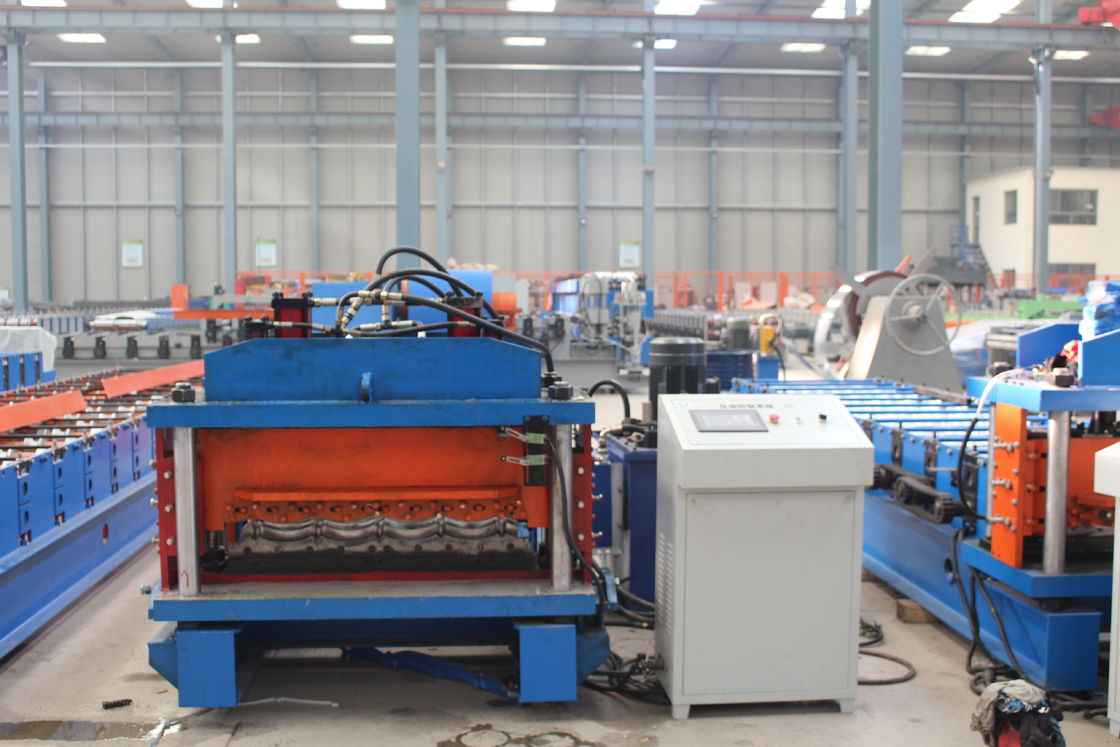

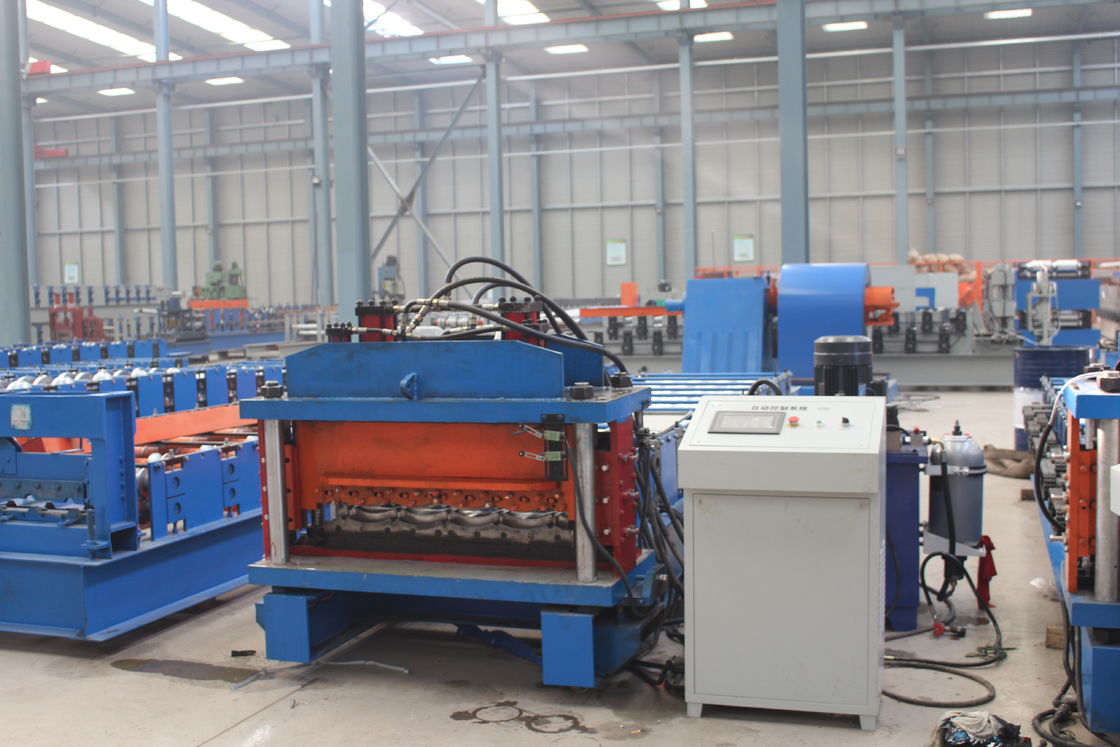

Factory Price for 0.3-0.8mm Thickness Glazed Roof Sheet Forming Machine

Product Specifications

Attribute	Value
Product Name	Glazed Tile Roll Forming Machine 4 Meter / Min With 18 Rows
Roller Of Glazed Tile	20 Rows
Production Speed	0 - 4 M / Min
Voltage	380V 50Hz 3phases
Control system	PLC
The Width Of H Steel	350 - 400 Mm
Motor Style	5.5 Kw Servo Motor
Automation	Full automatic

Product Description

The archaistic tile sheet is rolled and pressed by modular glazed roll forming machine. It enjoys good appearance, primitive simplicity and elegance, unique style, noblest grade, and etc. It is widely used in garden style factories, scenic resorts, pavilions, hotels, villas, exhibition halls, country clubs, and so on for outdoor decorations.

Technical Specifications

Total power: 5.5 + 4 KW
Rows of rollers: 18 Rows
Diameter OF shaft: ￠70mm
Voltage: 380V 50Hz 3phases
Thickness: 0.6 mm

Warranty Information

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts)
Repairs will not be performed even during the guarantee period in the following circumstances:
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
